Tech Specs

Note：If you want to achieve the function of Auto Leveling you need to buy a leveling sensor.

Printing Specifications:
Print technology: FDM
Build volume: 320*320*420mm
Printing accuracy: 0.05mm
Positioning precision: X/Y：0.11mm. Z：0.0025mm
Printing speed: 80-110mm/s recommended
Filament diameter: 1.75mm
Nozzle diameter: 0.4mm
Filament: PLA ABS wood polymers etc

Software:
Operating system: Windows MAC Linux
Control software: EasyPrint 3D Cura，Repetier-Host，Simplify3D
File format: STL，OBJ，Gcode

Temperature:
Max temperature for hotbed: 100℃
Max temperature for extruder: 250℃

Electrical:
Power supply: 115V/230V 50HZ~60HZ
Display screen: 3.2″ Full-color touch screen
Connectivity: Wi-Fi (with an optional 3D WiFi module) USB SD card (support stand-alone printing)

Mechanical:
frame: Aluminum profile
Build Platform: Aluminum heatbed+ tempered glass

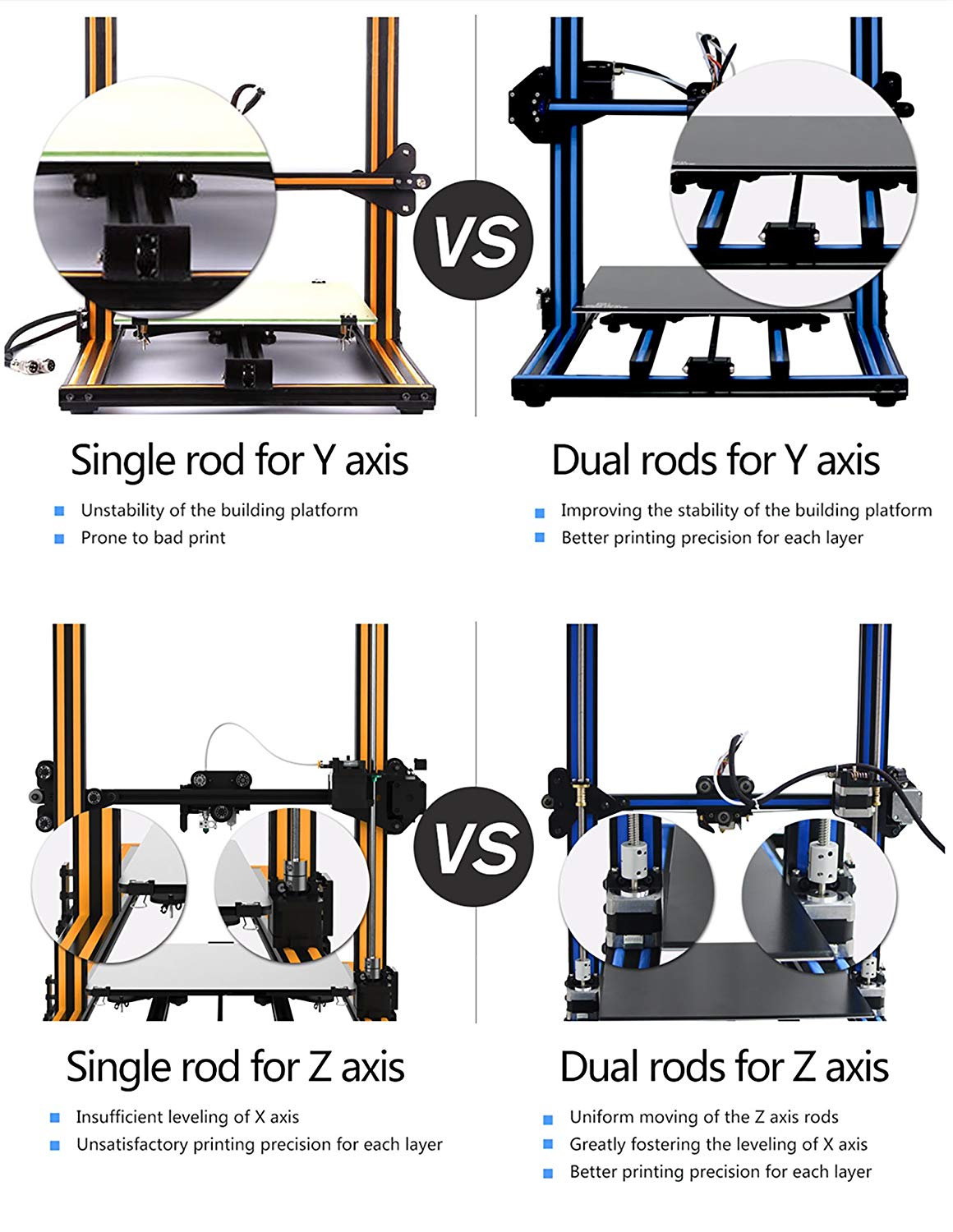

XYZ Rods: Wear-resistant aluminum profile( XY Rods) and lead screw (Z axis)
Stepper Motors: 1.8°step angle with 1/16 micro-stepping

Package list

Physical Dimensions and Weight:
Machine Dimension: 508x615.5x630.5 mm
Shipping box Dimension: 670x560x300 mm
Machine Net weight: 11.7 kg
Machine Gross weight: 14.6 kg
